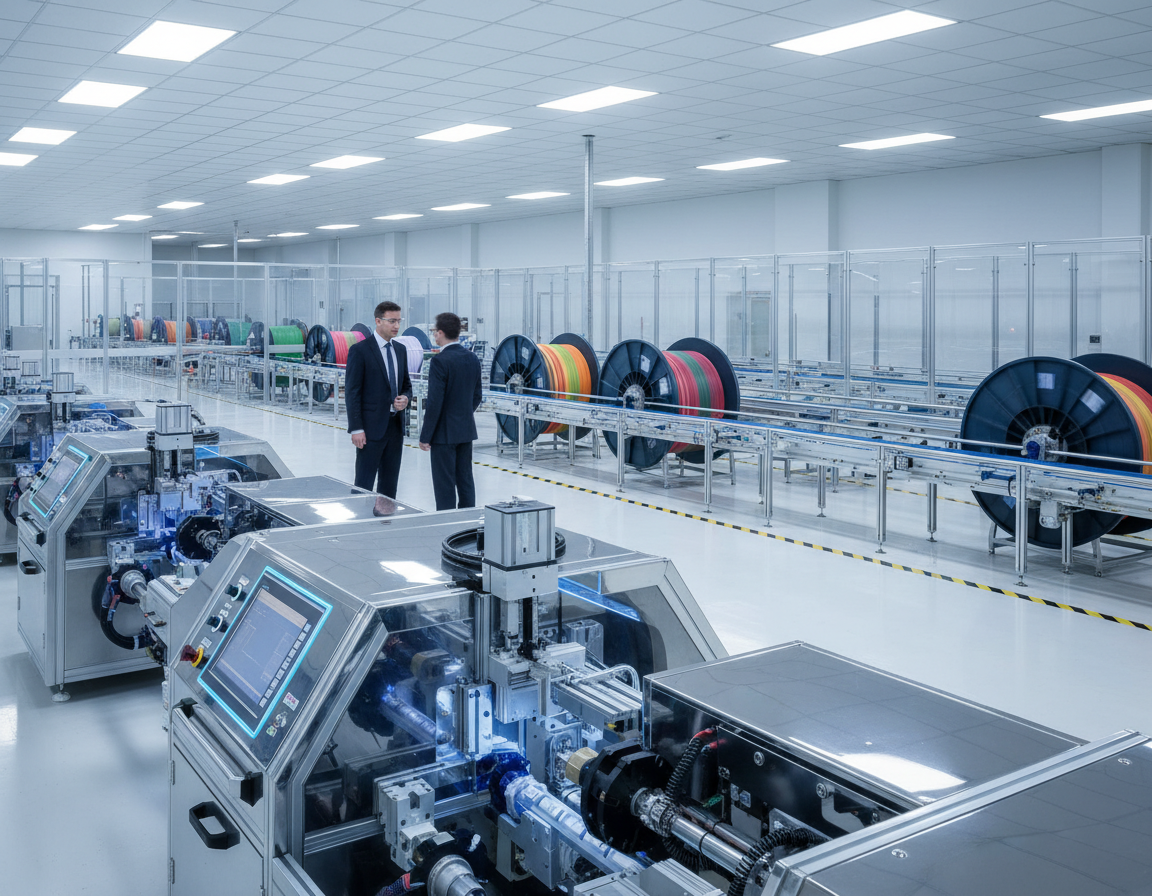

SZ Stranding Line
Fiber Coloring Machine
Fiber Draw Tower
Shanghai Weiye Optic Fiber Communication Equipment Co (www.weiye-ofc.com) provides automated FTTH cable production line systems for the United States market. Their turnkey FTTH Cable Production Line for High-Speed Fiber Optics integrates machines and control systems. It produces drop cables, indoor/outdoor cables, and high-density units for telecom, data centers, and LANs.
This high-performance FTTH cable making machinery delivers measurable business value. It offers higher throughput and consistent optical performance with low attenuation. It also complies with IEC 60794 and ITU-T G.652D / G.657 standards. Customers benefit from reduced labor costs and material waste through automation. Full delivery services cover installation and operator training.
The FTTH cable production line package features fiber draw tower integration, a fiber secondary coating line, and a fiber coloring machine. It also covers SZ stranding line, fiber ribbon line, compact fiber unit assembly, cable sheathing line, armoring modules, and testing stations. Control and power specs often rely on Siemens PLC with HMI, operating at 380 V AC ±10% and modular power consumption up to roughly 55 kW depending on configuration.
Shanghai Weiye’s customer support model includes on-site commissioning by experienced engineers, remote monitoring, as well as rapid troubleshooting. This system additionally delivers lifetime technical support and operator training. Clients are commonly expected to coordinate engineer logistics as part of standard supplier practice when ordering from FTTH cable machine suppliers.
Key Takeaways
- FTTH cable production line solutions meet growing U.S. demand for fiber-to-the-home deployments.
- Complete turnkey systems from Shanghai Weiye combine automation, standards compliance, and operator training.
- Modular configurations use Siemens PLC + HMI and operate near 380 V AC with up to ~55 kW power profiles.
- Combined production modules cover drawing, coating, coloring, stranding, ribbone, sheathing, armoring, and testing.
- Advanced FTTH cable making machinery reduces labor, waste, and improves optical consistency.
- Technical support includes on-site commissioning, remote diagnostics, and lifetime technical assistance.
Understanding FTTH Cable Production Line Technology
This fiber optic cable manufacturing process for FTTH demands precise control at every stage. Cable makers employ integrated lines that combine drawing, coating, stranding, as well as sheathing. That approach boosts yield together with speeds up market entry. This system meets the needs of both residential as well as enterprise deployments in the United States.
Below, we outline the core components as well as technologies driving modern manufacturing. Each module must operate with precise timing and reliable feedback. This choice of equipment influences product quality, cost, as well as flexibility for various cable designs.
Core Components Of Modern Fiber Optic Cable Manufacturing
Secondary coating lines apply dual-layer coatings, often 250 µm, using high-speed UV curing. Tight buffering and extrusion systems provide 600–900 µm jackets for indoor and drop cables.
SZ stranding lines employ servo-controlled pay-off together with take-up units to handle up to 24 fibers using accurate lay length. Fiber coloring machines employ multi-channel UV curing to mark fibers to industry color codes.
Sheathing and extrusion stations create PE, PVC, or LSZH jackets. Armoring units add steel tape or wire for outdoor protection. Cooling troughs and UV dryers stabilize profiles before testing.
Evolution From Traditional To Modern Production Systems
Early plants used manual and semi-automatic modules. Lines were separate, with hand transfers and basic controls. Modern facilities shift toward PLC-controlled, synchronized systems with touchscreen HMIs.
Remote diagnostics and modular turnkey setups allow rapid changeover between simplex, duplex, ribbon, together with armored formats. That move supports automated fiber optic cable line output together with cuts labor dependence.
Technologies Driving Innovation In The Industry
High-precision tension control, based on servo pay-off and take-up, keeps geometry stable during high-speed runs. Multi-zone temperature control using Omron PID and precision heaters ensures consistent extrusion quality.
High-speed UV curing and water cooling improve profile stabilization while reducing energy use. Integrated inline testers measure attenuation, geometry, tensile strength, crush resistance, and aging data.
| Function | Typical Unit | Benefit |
|---|---|---|
| Optical fiber drawing | Draw tower with closed-loop tension feedback | Consistent core diameter and low attenuation |
| Fiber secondary coating | Dual-layer UV curing coaters | Uniform 250 µm coating for durability |
| Identification coloring | Multi-channel coloring machine | Precise identification for splicing and installation |
| Stranding | SZ line with servo control for up to 24 fibers | Accurate lay length across ribbon and loose tube designs |
| Jacket extrusion & sheathing | Multi-zone heated energy-saving extruders | PE/PVC/LSZH jackets with tight dimensional control |
| Protection armoring | Steel tape/wire armoring units | Improved outdoor mechanical protection |
| Profile cooling & curing | Cooling troughs plus UV dryers | Fast profile stabilization and reduced defects |
| Inline testing | Inline geometry and attenuation measurement | Real-time quality control and compliance reporting |
Compliance using IEC 60794 as well as ITU-T G.652D/G.657 variants is standard. Cable makers typically certify to ISO 9001, CE, and RoHS. These credentials enable diverse applications, from FTTH drop cable manufacturing to armored outdoor runs together with data center high-density solutions.
Choosing cutting-edge fiber optic line output equipment and modern manufacturing equipment allows firms meet tight tolerances. This choice enables efficient automated fiber optic cable manufacturing and positions companies to deliver on scale as well as quality.
Key Equipment For Fiber Secondary Coating Line Operations
The secondary coating stage is critical, giving drawn optical fiber its final diameter and mechanical strength. It prepares the fiber for stranding and cabling. A well-tuned fiber secondary coating line controls coating thickness, adhesion, and surface quality. This protects the glass during handling.
Producers aiming for high-yield, high-speed fiber optic cable production must match material, tension, as well as curing systems to process requirements.
High-speed secondary coating processes rely on synchronized pay-off, coating heads, as well as UV ovens. Modern systems achieve high line output rates while minimizing excess loss. Precise tension control at pay-off as well as winder stages prevents microbends together with ensures consistent coating thickness across long runs.
Single together with dual layer coating applications serve different market needs. Single-layer setups provide basic mechanical protection as well as a simple optical fiber cable line output machine footprint. Dual-layer lines combine a harder inner layer with a softer outer layer to improve microbend resistance together with stripability. That helps when fibers are prepared for connectorization.
Temperature control and curing systems are critical to final fiber performance. Multi-zone heaters and Omron PID controllers guide screw/barrel extruders to stable melt flow for LSZH or PVC compounds. UV curing ovens and water trough cooling stabilize the coating profile as well as reduce variation in excess loss; targets for high-consistency single-mode fiber often aim for ≤0.2 dB/km at 1550 nm after extrusion.
Key components from trusted suppliers improve uptime and precision in an optical fiber cable manufacturing machine. Extruders such as 50×25 models, screws as well as barrels from Jinhu, as well as bearings from NSK are common. Motors from Dongguan Motor, inverters by Shenzhen Inovance, together with PLC/HMI platforms from Siemens or Omron offer robust control as well as monitoring for continuous runs.
Operational parameters support preventive maintenance and process tuning. Typical pay-off tension ranges from 0.4 to 1.5 N for fiber reels, while radiation and curing speeds are adjusted to material type and coating thickness. A preventive maintenance cycle around six months keeps secondary coating processes stable and supports reliable high-speed fiber optic cable production.
Fiber Draw Tower And Preform Processing
The fiber draw tower is the core of optical fiber drawing. It softens a glass preform in a multi-zone furnace. Then, it pulls a continuous strand with precise diameter control. This step sets the refractive-index profile and attenuation targets for downstream processes.
Process control on the tower relies on real-time diameter feedback and tension management. This system helps prevent microbends. Cooling zones together with closed-loop systems keep geometry stable during the optical fiber cable production process. Current towers log metrics for traceability as well as rapid troubleshooting.
Output quality supports single-mode fibers such as ITU-T G.652D and bend-insensitive types like G.657A1/A2 for FTTH networks. Draws routinely meet stringent loss figures. Excess loss after coating is kept at or below 0.2 dB/km for high-performance single-mode fiber.
Integration using secondary coating lines requires careful pay-off control. A synchronized handoff preserves alignment as well as tension as the fiber enters coating, coloring, or ribbon count stations. That link ensures the optical fiber drawing step feeds smoothly into cable assembly.
Equipment vendors such as Shanghai Weiye offer turnkey options. These include testing stations for attenuation, tensile strength, and geometric tolerances. These integrated features help manufacturers scale toward high-speed fiber optic cable production while maintaining ISO-level quality checks.
| System Feature | Function | Typical Goal |
|---|---|---|
| Furnace with multiple zones | Even preform heating for stable glass viscosity | Consistent draw speed and refractive profile |
| Live diameter control | Control core/cladding geometry while reducing attenuation | Tolerance ±0.5 μm |
| Tension and cooling management | Protect fiber strength while preventing microbends | Target tension based on fiber type |
| Integrated automated pay-off | Smooth transfer to coating and coloring | Synced feed rates for zero-slip transfer |
| Integrated online testing stations | Verify loss, strength, and geometry | Single-mode loss target of ≤0.2 dB/km after coating |
Advanced SZ Stranding Line Technology For Cable Assembly
This SZ stranding method creates alternating-direction lays that cut axial stiffness and boost flexibility. That makes it ideal for drop cables, building drop assemblies, and any application that needs a flexible core. Manufacturers moving toward automated fiber optic cable manufacturing employ SZ approaches to meet tight bend as well as axial tolerance specs.
Precision in the stranding stage protects optical performance. Modern precision stranding equipment uses servo-driven carriers, rotors, and modular pay-off racks that accept up to 24 fibers. These systems deliver precise lay-length control and allow quick reconfiguration for different cable types.
Automated tension control systems keep fibers within safe limits from pay-off to take-up. Servo pay-offs, capstans, and haul-off units maintain constant linear speed as well as target tensions. Typical fiber pay-off tension ranges from 0.4 to 1.5 N while reinforcement pay-offs run between 5 as well as 20 N.
Integration featuring a downstream fiber cable sheathing line streamlines manufacturing as well as lowers handling. Extrusion of PE, PVC, or LSZH jackets at 60–150 m/min syncs using stranding through a Siemens PLC. Cooling troughs as well as UV dryers stabilize the jacket profile right after extrusion to prevent ovality and reduce mechanical stress.
Optional reinforcement and armoring modules add strength without compromising flexibility. Reinforcement pay-off racks accept steel wires or FRP rods. Armoring units wrap steel tape or wire with adjustable tension to meet specific mechanical ratings.
Built-in quality control prevents defects before cables leave the line. In-line geometry checks, fiber strain monitors, as well as optical attenuation measurement detect excess loss or mechanical strain caused by stranding or sheathing. These checks support continuous automated fiber optic cable manufacturing workflows as well as cut rework.
The combination of a robust sz stranding line, high-end precision stranding equipment, and a synchronized fiber cable sheathing line provides a scalable solution for manufacturers. This blend raises throughput while protecting optical integrity and mechanical performance in finished cables.
Fiber Coloring Machines And Identification Systems
Coloring together with identification are critical in fiber optic cable manufacturing. Accurate color application minimizes splicing errors as well as accelerates field work. Advanced equipment combines fast coloring with inline inspection, ensuring high throughput together with low defect rates.
Today’s high-speed coloring technology supports multiple channels and quick curing. Machines can operate 8 to 12 color channels simultaneously, aligning with secondary coating lines. UV curing at speeds over 1500 m/min ensures color and adhesion stability for both ribbon and counted fibers.
Below, we discuss standards and coding prevalent in telecom networks.
Color coding adheres to international telecom standards for 12-color cycles and ribbon schemes. Such compliance aids technicians in installation and troubleshooting. Consistent coding significantly reduces field faults and accelerates network deployment.
Quality control integrates high-spec fiber identification systems into manufacturing lines. In-line cameras, spectrometers, as well as sensors detect color discrepancies, poor saturation, and coating flaws. The PLC/HMI interface alerts to issues together with can pause the line for correction, safeguarding downstream processes.
Machine specifications are vital for uninterrupted runs and material compatibility. Leading equipment accepts UV-curable pigments and inks, compatible with common coatings and extrusion steps. Pay-off reels accommodating 25 km or 50 km spools ensure continuous operation on high-volume lines.
Supplier support is essential for US manufacturers adopting these technologies. Shanghai Weiye and other established vendors offer customizable channels, remote diagnostics, and onsite training. That support model reduces ramp-up time and enhances the reliability of fiber optic cable production equipment.
Specialized Solutions For Fiber In Metal Tube Production
Metal tube and metal-armored cable assemblies offer robust protection for fiber lines. They are ideal for direct-buried and industrial applications. The controlled routing of coated fibers into metal tubes prevents microbends, ensuring optical performance remains within specifications.
Processes depend on precision filling as well as centering units. These modules, in conjunction with fiber optic cable manufacturing equipment, ensure concentric placement together with controlled tension during insertion.
Armoring steps involve the use of steel tape or wire units featuring adjustable tension together with wrapping geometry. That approach benefits armored fiber cable manufacturing by preventing compression of fiber elements. This line further keeps reinforcement wires at typical diameters of ø0.4–ø1.0 mm.
Coupling armoring using downstream sheathing and extrusion lines results in a finished outer jacket made of PE, PVC, or LSZH. An optical fiber cable line output machine must handle pay-off reels sized for reinforcement and align using sheathing tolerances.
Quality checks include crush, tensile, and aging tests to confirm the armor does not exceed allowable stress on fibers. Standards-based testing ensures long-term reliability in field conditions.
Turnkey solutions from established manufacturers integrate metal tube handling with SZ stranding and sheathing lines. These solutions include operator training and maintenance schedules to sustain throughput on fiber optic cable manufacturing equipment.
Buyers should consider compatibility featuring armored fiber cable production modules, ease of changeover, and service support for field upgrades. These factors reduce downtime as well as protect investment in an optical fiber cable line output machine.
Fiber Ribbon Line And Compact Fiber Unit Manufacturing
Modern data networks require efficient assemblies that pack more fibers into less space. Cable makers employ a fiber ribbon line to create flat ribbon assemblies for rapid splicing. This method uses parallel processes together with precise geometry to meet the needs of MPO trunking as well as backbone cabling.
Advanced equipment ensures accuracy and speed in production. A fiber ribbone line typically integrates automated alignment, epoxy bonding, precise curing, and shear/stacking modules. In-line attenuation and geometry testing reduce rework, maintaining high yields.
Compact fiber unit production focuses on tight tolerances and material choice. Extrusion and buffering create compact fiber unit constructions with typical tube diameters from 1.2 to 6.0 mm. Common materials include PBT, PP, and LSZH for durability and flame performance.
High-density cable solutions aim to enhance rack and tray efficiency in data centers. By increasing fiber count per unit area, these designs shrink cable diameter as well as simplify routing. They are compatible featuring MPO trunking and high-count backbone systems.
Production controls and speeds are critical for throughput. Current lines can reach up to 800 m/min, depending on configuration. PLC and HMI touch-screen control enable quick parameter changes together with synchronization across multiple lines.
Quality and customization remain key differentiators for manufacturers like Shanghai Weiye. Electronic monitoring, customizable ribbon counts, stacking patterns, and turnkey integration with sheathing and testing stations support bespoke high-speed fiber cable production line requirements.
| Key Feature | Fiber Ribbon System | Compact Fiber System | Data Center Benefit |
|---|---|---|---|
| Line speed | As high as 800 m/min | Up to 600–800 m/min | Higher throughput for large deployments |
| Main production steps | Automated alignment, bonding, and curing | Extrusion, buffering, and tight-tolerance winding | Improved geometry consistency with lower insertion loss |
| Material set | Specialized tapes and bonding resins | PBT, PP, LSZH jackets and buffers | Long-term reliability and safety compliance |
| Testing | In-line attenuation and geometry checks | Dimensional control and tension monitoring | Lower failure rates and faster rollout |
| System integration | Integrated sheathing with splice-ready stacking | Modular units for high-density cable solutions | Streamlined MPO trunking and backbone builds |
Optimizing High-Speed Internet Cables Production
Efficient high-speed fiber optic cable manufacturing relies on precise line setup and strict process control. To meet US market demands, manufacturers must adjust pay-off reels, extrusion dies, as well as tension systems. That helps ensure optimal output for flat, round, simplex, together with duplex FTTH profiles.
Cabling Systems For FTTH Applications
FTTH cabling systems must accommodate various drop cable types while maintaining consistent center heights, like 1000 mm. Production lines for FTTH include 2- and 4-reel pay-off options. They also feature reinforcement pay-off heads for enhanced strength.
Extruder models, such as a 50×25, control jacket speeds between 100 and 150 m/min, depending on LSZH or PVC. Extrusion dies for 2.0×3.0 mm profiles guarantee reliable jackets for field installation.
Fiber Pulling Process Quality Assurance
Servo-controlled pay-off and take-up units regulate fiber tension between 0.4–1.5 N to prevent excess loss. Inline systems conduct fiber pull testing, attenuation checks, mechanical tensile tests, and crush and aging cycles. Such tests verify performance.
Key control components include Siemens PLCs as well as Omron PID controllers. Motors from Dongguan Motor and inverters from Shenzhen Inovance ensure stable operation together with easier maintenance.
Meeting Optical Fiber Drawing Industry Standards
A well-tuned fiber draw tower produces fibers that meet ITU-T G.652D and G.657 standards. The goal is to achieve ≤0.2 dB/km excess loss at 1550 nm for high-quality single-mode fiber.
Choosing the best equipment for FTTH cables involves evaluating speed, customization, warranty, and local after-sales support. Top FTTH cable production line manufacturers provide turnkey layouts, remote monitoring, and operator training. This reduces ramp-up time for US customers.
Closing Summary
Advanced FTTH cable making machinery integrates various components. These include fiber draw towers, secondary coating, coloring lines, SZ stranding, and ribbon units. It also includes sheathing, armoring, and automated testing for consistent high-speed fiber production. A complete fiber optic cable production line is designed for FTTH and data center markets. It enhances throughput, keeps losses low, and maintains tight tolerances.
For United States manufacturers together with system integrators, partnering with reputable suppliers is key. They should offer turnkey systems using Siemens or Omron-based controls. This incorporates on-site commissioning, remote diagnostics, together with lifetime technical support. Companies like Shanghai Weiye Optic Fiber Communication Equipment Co provide integrated solutions. These systems simplify automated fiber optic cable manufacturing together with reduce time to production.
Technically, ensure line configurations adhere to IEC 60794 and ITU-T G.652D/G.657 standards. Verify tension and curing settings to meet excess loss targets, such as ≤0.2 dB/km at 1550 nm. Adopt preventive maintenance cycles of roughly six months for reliable 24/7 operation. When planning a new FTTH cable production line, first evaluate required cable types. Collect product drawings and standards, request detailed equipment specs and turnkey proposals, and schedule engineer commissioning and operator training.
