Compression fittings deliver a dependable method to couple copper pipes, eliminating the need for solder work or open flames. A Copper Compression Union is built around a body, ferrule, and nut, and the seal is made when the nut is secured with a wrench. This feature makes the Compression Fitting 3/4 and the 3/4 Copper Compression Fitting favorites among both professional plumbers and DIY enthusiasts.

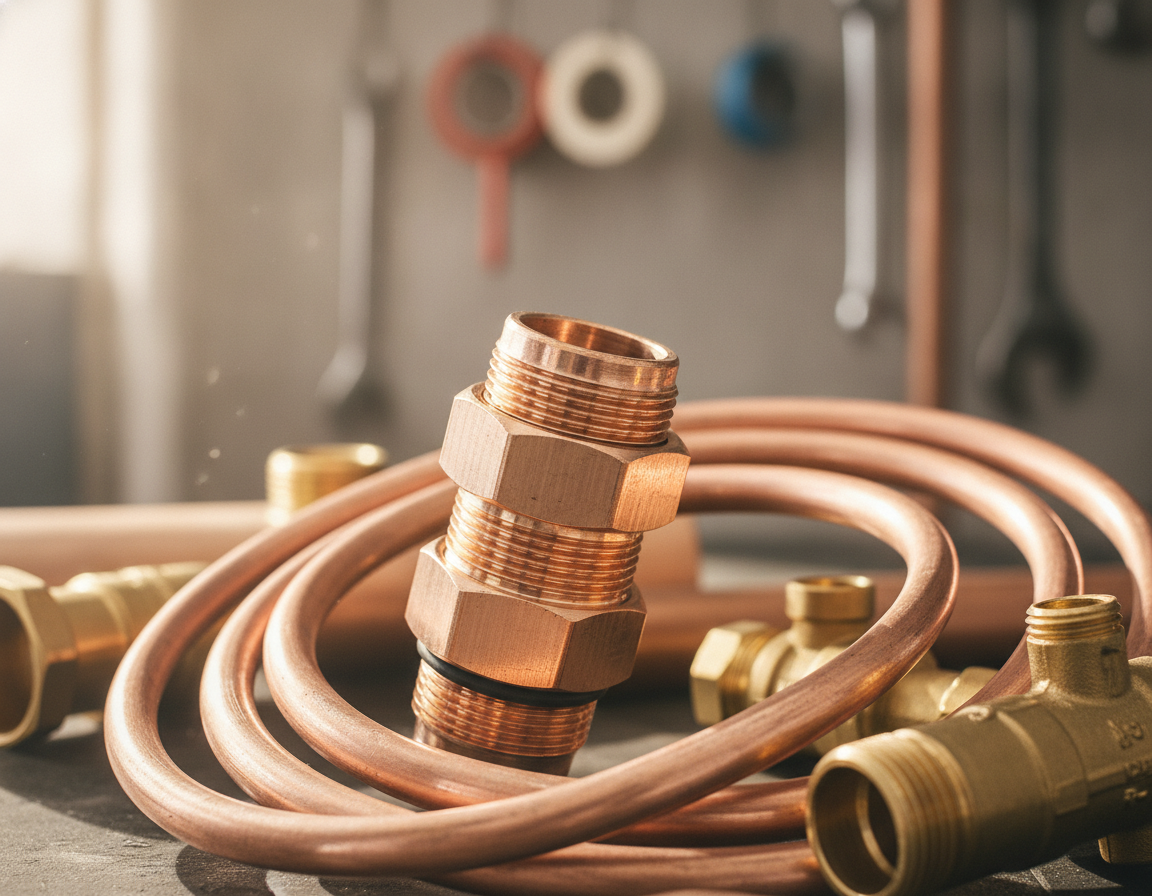

Compression Fitting 3/4
These unions are versatile, suitable for both residential and commercial projects, including water lines and instrumentation. Installation Parts Supply often offers 3/4 Compression Fitting Copper and 3 4 Compression Fittings in options such as brass, copper, and stainless steel. As the nut tightens, the ferrule bites between the tapered body and nut, locking onto tubing such as annealed copper or compatible thermoplastic tube.
Essential Takeaways
- Copper Compression Union couples copper pipe without soldering.
- Compression Fitting 3/4 and 3/4 Copper Compression Fitting are popular sizes.
- Installation Parts Supply typically offers 3/4 Compression Fitting Copper and 3 4 Compression Fittings.
- Brass bodies and ferrules deliver strength and corrosion resistance.
- Wrench-tightening the nut compresses the ferrule to form a leak-tight seal.
Understanding Copper Compression Union: Design And Components
A Copper Compression Union is a multi-part fitting that couples tubing without solder. It is commonly applied in plumbing, HVAC, refrigeration, gas distribution, and instrumentation. This is because it provides a tight, compressive seal. The 3 4 Copper Compression Union is frequently used in residential and light-commercial installations.
What A Copper Compression Union Is And Where It Is Used
A compression union joins two tube ends by seating a ring around the pipe as the nut is tightened. It is often used for quick repairs, service loops, and confined spaces where torch work is impractical. A 3/4 Copper Compression Fitting is practical for mains, branch lines, and appliance feeds where brazing is not desired.
Parts Of A Compression Union: Body, Ferrule Olive, And Nut
The union body forms the threaded section that receives the nut. The ferrule, also called an olive, bites against the pipe and fitting body as the nut is tightened. The nut threads onto the body and provides the compression force. Proper seating of the ferrule is important for a leak-free joint and for serviceability in the field.
Copper Union Materials: Copper, Brass, Stainless Steel, And Plastics
Brass unions offer ductility and corrosion resistance, making them compatible with copper pipe for water and gas. Stainless steel adds extra strength for high-pressure or high-temperature systems. Copper-to-copper unions offer similar thermal expansion and fit common tubing sizes. Plastic ferrules and fittings, such as acetal or nylon, are used in low-pressure domestic systems where nonmetallic connections or chemical resistance are useful.
Why Copper-To-Copper Unions Reduce Galvanic Corrosion Risk
Matching metals limit galvanic corrosion risk because similar alloys have closer electrochemical behavior. A copper-to-copper union or a brass body mated to copper pipe lowers the chance of active corrosion at the joint. Avoid pairing copper with carbon steel or dissimilar metals without dielectric breaks when using a 3/4 Compression Fitting Copper to ensure long-term durability.
Benefits Of Using Compression Fittings For Copper Pipes
Compression fittings provide a quick, safe alternative to soldered joints for copper pipes. They eliminate the need for an open flame, reducing fire risks near insulation, drywall, or aging structures. A Compression Fitting 3/4 can deliver a dependable seal without heat, making it useful for retrofits and tight locations.
Installation is simple and consistent across most brands. First, slide the nut and then the ferrule. Next, push the tube fully into the body and hand-tighten before applying the final wrench turns. A 3/4 Compression Fitting or 3 4 Compression Fitting can be fitted quickly in tight crawl spaces and behind cabinets where a torch would be impractical.
Serviceability is one of the main advantages of compression unions. Many tradespeople choose 3 4 Compression Fittings because assemblies can be loosened or repositioned without cutting pipe. Although ferrules often need replacement after disassembly, the overall joint may remain serviceable, saving time during repairs, changes, or modifications.
Compression fittings can be used in many systems beyond ordinary household plumbing. They appear in gas distribution, HVAC refrigeration lines, and instrumentation systems where leak integrity and maintenance access matter. For projects requiring a compact, heat-free connection, a Compression Fitting 3/4 or 3/4 Compression Fitting offers a practical solution.
| Characteristic | Compression Joint | Soldered Joint |
|---|---|---|
| Heat required | No heat required | Heat required |
| Assembly time | Rapid | More time required |
| Ease of service | Often serviceable | Permanent |
| Use in tight spaces | Very good | Often difficult |
| Typical uses | Repairs, gas, HVAC, and serviceable lines | Long-term fixed plumbing connections |
Choosing The Right Size And Material For Reliable Connections
A reliable plumbing joint starts with the correct size and material selection. Before buying, confirm both the pipe outside diameter and the fitting designation. Misinterpretation of terms like 3/4 Compression Fitting can cause leaks and costly repairs.
It is necessary to distinguish between nominal size and outside diameter OD when selecting products. Look for SKU terms such as 3 4 Copper Compression Union or 3/4 Copper Compression Fitting. This helps ensure the ferrule seats correctly on your copper tubing.
Useful SKU keywords for buying
Retail pages and manufacturer catalogs may list the same fitting under several names. Look for clear labeling and adherence to standards. Common terms include Compression Fitting 3/4 and 3 4 Copper Compression Union. Make sure the product description matches your pipe OD or nominal sizing requirement.
Material selection
Brass is the favored material for copper pipe systems due to its ductility and corrosion resistance. A 3/4 Union Brass or a 3 4 Union Brass fits the needs of most residential and light-commercial applications.
Copper unions are well suited for matching metals, managing thermal expansion, and preventing galvanic action. A 3/4 Compression Fitting Copper offers a homogeneous connection suitable for refrigeration and traditional plumbing.
Stainless steel is often recommended where higher pressure, heat, or aggressive chemicals are involved. It offers greater strength and chemical resistance compared to brass and copper.
When plastic compression fittings can be used
Acetal or nylon compression fittings may be suitable for low-pressure domestic water lines or situations where non-conductivity is needed. They have limitations, including lower temperature and pressure ratings, and vulnerability to certain chemicals.
Comparison of common coupling materials
| Fitting Material | Common Use | Relative Strength | Material Notes |
|---|---|---|---|
| 3/4 Union Brass in brass | Potable water, gas, general plumbing | Reliable | Good value with copper compatibility |
| Copper 3/4 Compression Fitting Copper | Refrigeration, plumbing, and same-metal joints | Reliable for standard service | Best where same-metal compatibility matters |
| Stainless steel | High-pressure, high-temperature, and corrosive-fluid service | High | Excellent for harsh industrial applications |
| Acetal or nylon plastic | Low-pressure household water lines | Low to Moderate | Nonmetallic but limited by temperature and chemistry |
Helpful sizing tip
When you see names such as 3 4 Brass Compression Coupling or 3/4 Inch Compression Fitting, confirm whether the listing refers to outside diameter or nominal pipe size. Verify compatibility against manufacturer specifications and, where relevant, approvals from trusted brands such as Dixon.
Best Installation Practices For A Leak-Free Union
Begin with clean, straight copper tubing. Use a pipe cutter to make a square cut. Remove burrs with a deburring tool, reamer, or fine sandpaper. A smooth, square end is essential to prevent ferrule damage and ensure a reliable seal when installing 3/4 Compression Fittings.
Put the components together in the correct order. Slide the compression nut onto the pipe with the threads facing outward, then install the ferrule. Push the pipe fully into the union body until it bottoms out. This step is critical to avoid gaps that can cause leaks when using a 3 4 Brass Compression Coupling or a 3/4 Compression Fitting Copper.
First, hand-tighten the nut so the parts align properly. Then use two wrenches, with one holding the fitting body steady and the other turning the nut. Follow the manufacturer’s recommended wrench turns past finger-tight. Over-tightening can crush the ferrule or crush the copper, reducing the life of a 3/4 Copper Compression Fitting.
Do not reuse ferrules after they have been compressed. Use a new ferrule and nut for each new compression joint. Do not install compression joints where constant vibration or repeated movement occurs. These conditions can loosen fittings such as 3/4 Compression Fittings and 3 4 Brass Compression Coupling over time.
Know the pressure and temperature ratings for the chosen fitting. Check product datasheets or packaging before installing. After assembly, slowly restore pressure and inspect for leaks. If minor weeping appears, tighten incrementally. If the leak continues, disassemble the joint and inspect the ferrule, nut, and pipe end to verify correct seating.
Compression Union Maintenance, Replacement, And Troubleshooting
Begin by shutting off the water supply and relieving pressure. Use two wrenches, one to hold the fitting body steady and the other to turn the compression nut counter-clockwise. Apply penetrating oil to a seized nut and let it soak before attempting removal.
Removing an existing compression union safely
Hold the pipe steady with one wrench and turn the nut with another. After the nut loosens, slide the nut and ferrule away from the tube end. If the union is old or corroded, loosen it slowly to avoid sudden leaks or pipe damage.
Choosing between ferrule replacement and full union replacement
Replace only the ferrule and nut when the fitting body is still sound but the sleeve shows wear, distortion, or scoring. Replace the full union if the body threads are corroded, leaks continue after new ferrules are installed, or the assembly no longer meets pressure or material requirements.
Failure signs: weeping, corrosion, and deformed ferrules
Inspect for weeping around the nut and ferrule, green or white corrosion on copper or brass, and ferrules that are crushed, split, or distorted. Vibration can loosen unions over time and lead to slow leaks.
How to remove a stuck ferrule without damaging copper pipe
Score the ferrule lengthwise with a thin rotary blade or hacksaw, then pry it open and peel it off. If available, use a ferrule puller for cleaner removal. If the tube shows nicks or flattening, recut the end square, deburr, and file smooth before reinstalling a new ferrule and nut.
Comparing longevity: compression union vs soldered joints for long-term service
Under static conditions, soldered joints usually provide a more permanent seal and may last longer. Compression unions offer ease of service and eliminate the need for flame, making them ideal for repairs and tight spaces. Where vibration or long-term mechanical stress is present, soldered joints often outperform compression fittings.
| Fitting Type | Ease Of Service | Expected Service Life | Ideal Application |
|---|---|---|---|
| 3 4 Compression Union Brass | Can be disassembled; ferrule may need replacement after several cycles | Typically 5–15 years, depending on water quality and movement | Repairs, tight spaces, no-flame requirements |
| 3/4 Union Brass | Serviceable if the body remains in good condition | 5–15 years | General plumbing where service access is needed |
| 3/4 compression fitting assembly | Limited reuse possible, but ferrules should be replaced after cycles | Varies by material; brass commonly 7–20 years | Quick repairs and installations without solder |
| 3/4 inch compression fitting | Simple to install, though ferrule reuse should be avoided | Varies by conditions and may shorten under movement | Residential plumbing and retrofit work |
| Soldered comparison for 3/4 Compression Fittings | Not serviceable once soldered; highly durable | Can exceed 20 years with good installation | Permanent runs and high-vibration systems |
When buying spare parts, compare compatible 3/4 Compression Fittings and 3/4 Inch Compression Fitting components from manufacturers such as Mueller, Nibco, or Watts. Always verify material compatibility and pressure ratings before reinstalling any replacement ferrule or nut.
Copper Compression Union Summary
Copper compression unions provide a practical way to join copper tubing without soldering. When correctly sized and installed, the union body, ferrule, and nut form a tight seal. This makes them perfect for situations where heat is not feasible or where serviceability is a priority.
When selecting materials, consider the application: brass or copper for potable systems to minimize galvanic risk, stainless steel for harsh or high-stress environments, and approved plastics where allowed. A 3/4 Compression Fitting or 3/4 Copper Compression Fitting can perform well when the pipe is cut square, the ferrule is seated properly, and tightening follows manufacturer guidance.
Maintenance is straightforward: inspect for weeping or corrosion, replace ferrules when needed, and avoid overtightening to extend union life. For parts such as a 3 4 Copper Compression Union or 3 4 Union Brass, confirm availability and specifications through Installation Parts Supply. This helps ensure compatibility, proper sizing, and correct installation guidance.
